Linear Bushes / LM Bearings

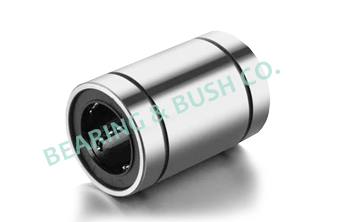

Linear Bushes, also known as LM Bearings (Linear Motion Bearings), are precision mechanical components designed to provide smooth, accurate, and low-friction linear motion along a hardened shaft. Unlike conventional rotary bearings, LM bearings enable movement in a straight line, making them essential in automation and precision machinery.

A standard linear bush consists of:

• Hardened outer steel sleeve
• Recirculating steel balls
• Ball retainer/cage
• End seals (in sealed models)
• Precision inner raceway

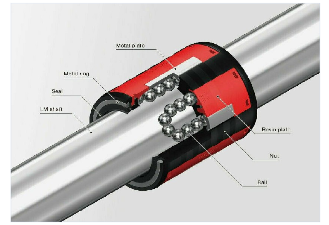

The recirculating balls roll between the shaft and bearing body, significantly reducing friction and ensuring smooth, precise movement over long strokes. Typical recirculating-ball LM bearings run with very low friction compared with sliding contact and are designed for repeated, accurate linear travel.

Working principle of Linear Bushes / LM Bearings:

The working principle of Linear Bushes / LM Bearings is based on rolling contact using recirculating steel balls instead of sliding friction.

A hardened and precision-ground shaft passes through the inner bore of the linear bush. The shaft acts as the guide path for linear movement. Inside the bearing, multiple rows of hardened steel balls make contact with the shaft surface. These balls support the applied load. As the bearing moves along the shaft, the balls roll between the shaft and the bearing raceway, significantly reducing friction compared to conventional sliding bushes. After completing one rolling cycle, the balls move through internal return channels and re-enter the load zone continuously. This recirculating mechanism enables unlimited linear travel. The balls evenly distribute radial loads across the shaft, ensuring smooth movement, high accuracy, and minimal wear.

Key Operating Advantages

• Low coefficient of friction
• Smooth and precise linear motion
• High load-carrying capacity
• Reduced wear and maintenance
• Suitable for high-speed and repetitive motion applications

Types of Linear Bushes / LM Bearings:

Linear bushes are available in various types depending on load capacity, mounting requirements, operating environment, and application needs.

Standard Linear Bushes

These are the most commonly used LM bearings designed for general-purpose linear motion applications.

• Compact cylindrical design
• High precision rolling motion
• Low friction and smooth travel
• Easy installation

Applications: CNC machines, packaging equipment, automation systems, textile machinery.

Flanged Linear Bushes

These bushes come with an integrated flange for easy mounting onto machine surfaces.

• Round Flange
• Square Flange
• Oval Flange
• Simplified mounting
• Better positional stability
• Suitable for vertical and horizontal installation

Applications: Industrial automation, robotic systems, assembly machines.

Adjustable Linear Bushes

These bearings allow preload adjustment to eliminate clearance and improve rigidity.

• Adjustable internal clearance
• Improved positioning accuracy
• Reduced vibration

Applications: Precision instruments, semiconductor equipment, measuring machines.

Open Type Linear Bushes

Designed with an open structure to work with supported shafts.

• Compatible with shaft support rails
• Handles higher loads
• Better shaft support over long travel lengths

Applications: Heavy-duty automation systems, gantry systems, machine tools.

Closed Type Linear Bushes

Fully enclosed design for use with unsupported shafts.

• Compact construction
• High running accuracy
• Suitable for standard shaft arrangements

Applications: 3D printers, medical equipment, light automation systems.

Long Type Linear Bushes

These have extended bearing length for increased load capacity and moment resistance.

• Higher load-bearing capability
• Improved stability
• Better alignment performance

Applications: CNC machinery, woodworking machines, industrial handling systems.

Super Linear Bushes

Advanced LM bearings designed for higher performance and self-alignment capability.

• Self-aligning design
• Handles shaft misalignment
• Low noise and smooth operation
• Extended service life

Applications: Precision automation, robotics, electronics manufacturing.

Corrosion-Resistant Linear Bushes

Made using stainless steel or special coatings for harsh environments.

• Rust resistance
• Suitable for humid or chemical environments
• Hygienic operation

Applications: Food processing, pharmaceutical machinery, marine equipment.

Sealed Linear Bushes

Equipped with seals on both sides to prevent contamination.

• Protection against dust and debris
• Reduced maintenance
• Longer operational life

Applications: Dusty industrial environments, woodworking, mining equipment.

Miniature Linear Bushes

Small-sized LM bearings for compact equipment.

• Lightweight
• High precision
• Space-saving design

Applications: Medical devices, laboratory equipment, electronics assembly.
