Bearing and Bush Co is among the leading Manufacturers & Exporters having wide range of Bearing,Bushes,Dry Washer, Flanged Washer, Automotive Washer, Pump Washer, Metal Washer and Parts that are utilized in automotive industry.

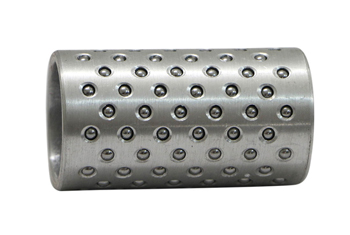

We Export our Products majorly in Middle East and African countriesALUMINIUM BALL CAGE
.jpg)

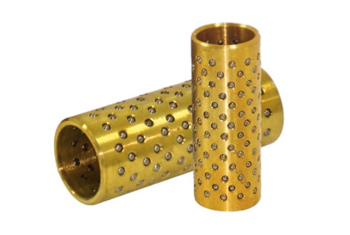

BRASS BALL CAGE
Ball Cage Bushes
Ball Cage Bushes are precision linear motion components
designed to provide smooth, low-friction movement between a
shaft and housing. They consist of a cage made from brass,
aluminum, steel, or engineering plastic that holds hardened
steel balls in a specific arrangement. These balls roll
between mating surfaces, enabling accurate linear or
reciprocating motion with minimal wear.
Ball cage bushes are widely used in precision machinery,
tooling systems, die sets, automation equipment, and
high-speed motion applications where smooth movement and
positional accuracy are essential. Industrial designs
typically use orderly ball arrangements for low-friction,
high-speed linear motion.
Key Features of Ball Cage Bushes
- Low coefficient of friction
- High precision linear movement
- Smooth and silent operation.
- High load-carrying capability.
- Long service life.
- Suitable for high-speed motion.
- Compact and lightweight design.
- Excellent wear resistance.
Ball Cage Bushes

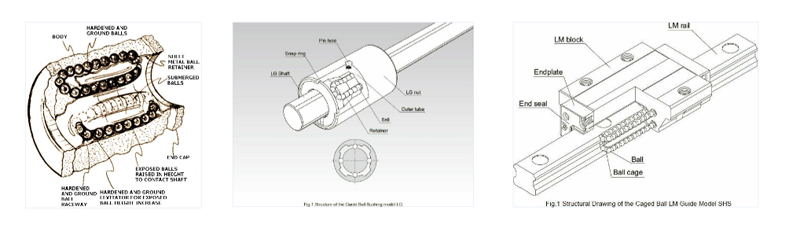

Working Principle of Ball Cage Bushes
A Ball Cage Bush is a precision linear motion component designed to provide smooth, low-friction movement between a shaft and housing. It uses hardened steel balls retained inside a cage structure, allowing linear motion with high accuracy and minimal wear.
How Ball Cage Bushes Work:
A hardened and ground shaft passes through the ball cage bush. Multiple precision steel balls are evenly arranged in a cage around the shaft. As the shaft moves linearly, the balls roll between the shaft and bush instead of sliding. The balls distribute the load uniformly over multiple contact points, reducing localized stress and friction. In recirculating designs, the balls move in a closed path, continuously circulating as the shaft moves. Because rolling friction is much lower than sliding friction, the shaft moves smoothly with high positional accuracy.
Types of Ball Cage Bushes:- Straight Ball Cage Bushes – for straight-line motion
- Spiral Ball Cage Bushes – for combined linear and rotational motion
- Brass Ball Cage Bushes – heavy-duty industrial applications
- Aluminum Ball Cage Bushes – lightweight applications
- Polymer Ball Cage Bushes – corrosion-resistant environments
Ball Cage Bushes Application Industries
Ball Cage Bushes—also known as linear ball bearing bushes are widely used in industries that require smooth linear motion, high precision, low friction, and long operational life. Major Industries Using Ball Cage Bushes
- • Automotive Industry : Ball Cage Bushes are used in Engine assembly equipment, Robotic welding systems, Conveyor systems, Press and stamping machines. They help ensure precise movement and repeatability in high-volume manufacturing.
- • Packaging Industry : Used in Filling machines, Labeling machines, Cartoning equipment, Pick-and-place systems. These bushes enable smooth and accurate linear motion for fast packaging operations.
- • Pharmaceutical Industry : Applied in Tablet manufacturing machines, Inspection systems, Packaging lines, Cleanroom automation systems. Their precision supports contamination-free and reliable motion control.
- • Food & Beverage Industry : Used in Bottling lines, Sorting systems, Filling and sealing machines,Material handling equipment. They support continuous motion with minimal maintenance.
- • CNC & Machine Tool Industry : Used in CNC routers, Drilling machines, Milling machines, Grinding machines. Ball Cage Bushes provide high positioning accuracy and reduced friction.
- • Medical Equipment Industry : Applied in Diagnostic machines, Laboratory automation, Surgical equipment, Imaging systems. Provides smooth, precise,and reliable motion.
- • Robotics & Automation Industry : Used in Robotic arms, Assembly automation, Pick-and-place systems, Motion control systems. Essential for precise guided movement.
- • Electronics & Semiconductor Industry : Applied in PCB assembly machines, Precision inspection equipment,Chip manufacturing automation. Offers micron-level movement accuracy.
- • Textile Industry : Used in Loom machines, Fabric cutting systems, Automatic stitching machinery. Supports high-speed repetitive motion.
- • Printing Industry: Applied in Offset printing machines, Paper feeding systems, Cutting and finishing equipment. They ensure smooth and vibration-free linear movement.
