ID Perforated Dry Bush
Bearing and Bush Co is recognized as one of the foremost manufacturers and exporters of a diverse range of Bearings, Bushes, Dry Washers, Flanged Washers, Automotive Washers, Pump Washers, Metal Washers, And Parts that are employed in the automotive sector.
We maintain a readily available inventory of bushes and washers in various sizes and specifications.

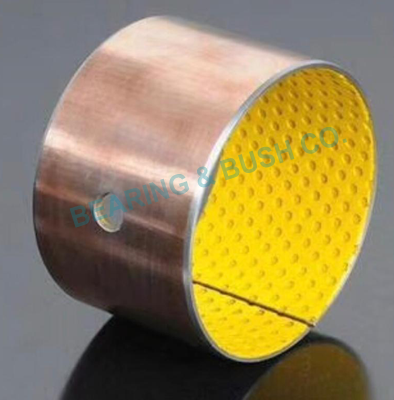

An ID Perforated Dry Bush is a self-lubricating bearing component designed with perforations or holes on the inner diameter (ID) surface to improve lubrication retention, reduce friction, and enhance wear resistance. These bushes are widely used in heavy-duty industrial applications where smooth motion, low maintenance, and long service life are required.
Manufactured using high-quality metal-backed composite materials, ID perforated dry bushes provide reliable performance under high loads, oscillating movements, and demanding operating conditions without the need for continuous external lubrication.
Bearing forms made to order:Cylindrical Bushes, Thrust Washers, Sliding Plates, Half-Bearings, Special Shapes Obtained By Stamping, Bearings With Locating Notches, Lubricant Holes And Machined Grooves, Customized Bearing Designs.
Key Features of ID Perforated Dry Bush
- Self-Lubricating Performance: The perforated inner surface helps retain lubricants and reduces direct metal-to-metal contact, ensuring smooth operation.
- High Load Carrying Capacity: Designed to withstand heavy radial and axial loads in industrial machinery and equipment.
- Low Friction & Wear Resistance: Provides excellent sliding properties and minimizes wear even during continuous operations.
- Corrosion & Temperature Resistance: Suitable for harsh environments, high temperatures, moisture, and contaminated conditions.
- Maintenance-Free Operation: Requires minimal lubrication and reduces maintenance downtime.
- Long Service Life: Engineered for durability and extended operational performance.
Material Composition : Most ID perforated dry bushes consist of
- Backing:Low Carbon Steel, Duly copper/Tin plated.
- ID: Porous surface of Cu Sn10 and overlay of Acetal Copolymer coating with Indentations.
- Load Bearing capacity Static: 250 N/mm²
- Load Bearing Capacity Dynamic: 140 N/mm²
- Hardness Internal Surface: No Idea
- No lead content: Rohs compliant so no lead content.
Working Principle of ID Perforated Dry Bush
The working principle of an ID Perforated Dry Bush is based on controlled self-lubrication, friction reduction, and efficient load handling. Its perforated internal structure ensures smooth motion, reduced wear, and reliable performance in demanding industrial applications where conventional lubrication may be difficult or insufficient.
How an ID Perforated Dry Bush Works
The bush is installed between a shaft and housing to support rotational or linear motion while minimizing metal-to-metal contact. The inner diameter contains small perforations or pockets that store lubricant or solid lubricating material. These perforations ensure continuous lubrication across the contact surface. During shaft movement, the lubricant trapped inside the perforations spreads evenly over the sliding surface, reducing friction and wear. This allows smooth operation even under high loads and varying speeds. The dry bush material, often made from bronze, steel-backed composite, or PTFE-lined material, provides excellent anti-friction properties. The lubrication film prevents direct contact between moving components. he perforated structure improves heat dissipation and minimizes seizure risk, resulting in longer operational life and reduced maintenance requirements.
Types of ID Perforated Dry Bushes:
ID Perforated Dry Bushes are available in different designs and material compositions to suit varying load capacities, operating temperatures, and lubrication requirements. These bushes are widely used in industrial machinery, automotive systems, hydraulic equipment, and heavy engineering applications.
- Flanged ID Perforated Bush - These bushes include an integrated flange to support axial loads along with radial loads. They prevents axial displacement, improve stability, compact installation design and reduced maintenance requirements.
- Wrapped Perforated Dry Bush - Manufactured using wrapped strip material with perforated inner surfaces for enhanced lubrication distribution. They have lightweight design, easy to install, have uniform lubricant flow and provide cost-effective solution.
- Bronze-Based Perforated Bush - These bushes are manufactured using high-quality bronze material with internal perforations for lubricant retention. They have excellent wear resistance, High load-carrying capacity, Good thermal conductivity, Suitable for continuous operation.
- PTFE Coated Perforated Bush - These bushes feature a PTFE (Teflon) sliding layer that provides self-lubricating properties. They are low friction coefficient, maintenance-free operation, noise reduction during movement and excellent chemical resistance.
- Graphite-Filled ID Perforated Dry Bushes - These bushes contain graphite inserts or graphite-filled layers that provide dry lubrication. They perform well in high-temperature conditions. No external lubrication required, suitable for dusty or contaminated environments and have long operational life.
Application Industries of ID Perforated Dry Bushes
ID Perforated Dry Bushes are widely used in industries that require high load-bearing capacity, low friction performance, self-lubrication, and reduced maintenance. These bushes are ideal for continuous sliding, oscillating, and rotating movements in harsh operating conditions.
- Automotive Industry: ID perforated dry bushes help reduce wear and ensure smooth operation in automotive moving parts. (Suspension systems, Steering assemblies, Shock absorbers, Clutch and brake mechanisms, Gear shifting systems)
- Textile Machinery: These bushes are preferred in textile machines due to their maintenance-free and low-friction characteristics. (Loom machines, Spinning equipment, High-speed rollers, Fabric processing units)
- Construction & Earthmoving Equipment: Their excellent wear resistance and high load capacity make them suitable for heavy-duty applications. (Excavators, Cranes, Loaders, Hydraulic equipment, Bulldozers)
- Agricultural Machinery: The bushes perform efficiently in dusty and rough outdoor environments. (Tractors, Harvesters, Irrigation systems, Seed processing equipment)
- Industrial Machinery: These bushes provide reliable operation under continuous motion and heavy mechanical stress. (Material handling equipment, Conveyors, Packaging machinery, Press machines, CNC equipment)
- Pumps & Compressors: ID perforated dry bushes help minimize friction and extend component life in rotating systems. (Water pumps, Air compressors, Hydraulic pumps, Vacuum systems)
- Electrical & Motor Applications: Their self-lubricating performance makes them ideal for enclosed motor assemblies. (Electric motors, Fans and blowers, Generator systems, Cooling equipment)
- Mining & Heavy Engineering : These bushes withstand harsh environments, shock loads, and abrasive operating conditions. (Crushers, Vibrating screens, Mineral processing equipment, Drilling machinery)
- Marine & Chemical Industries: Their chemical and erosion resistance improves reliability in aggressive operating conditions. (Marine machinery, Chemical processing units, Corrosion-prone environments)
